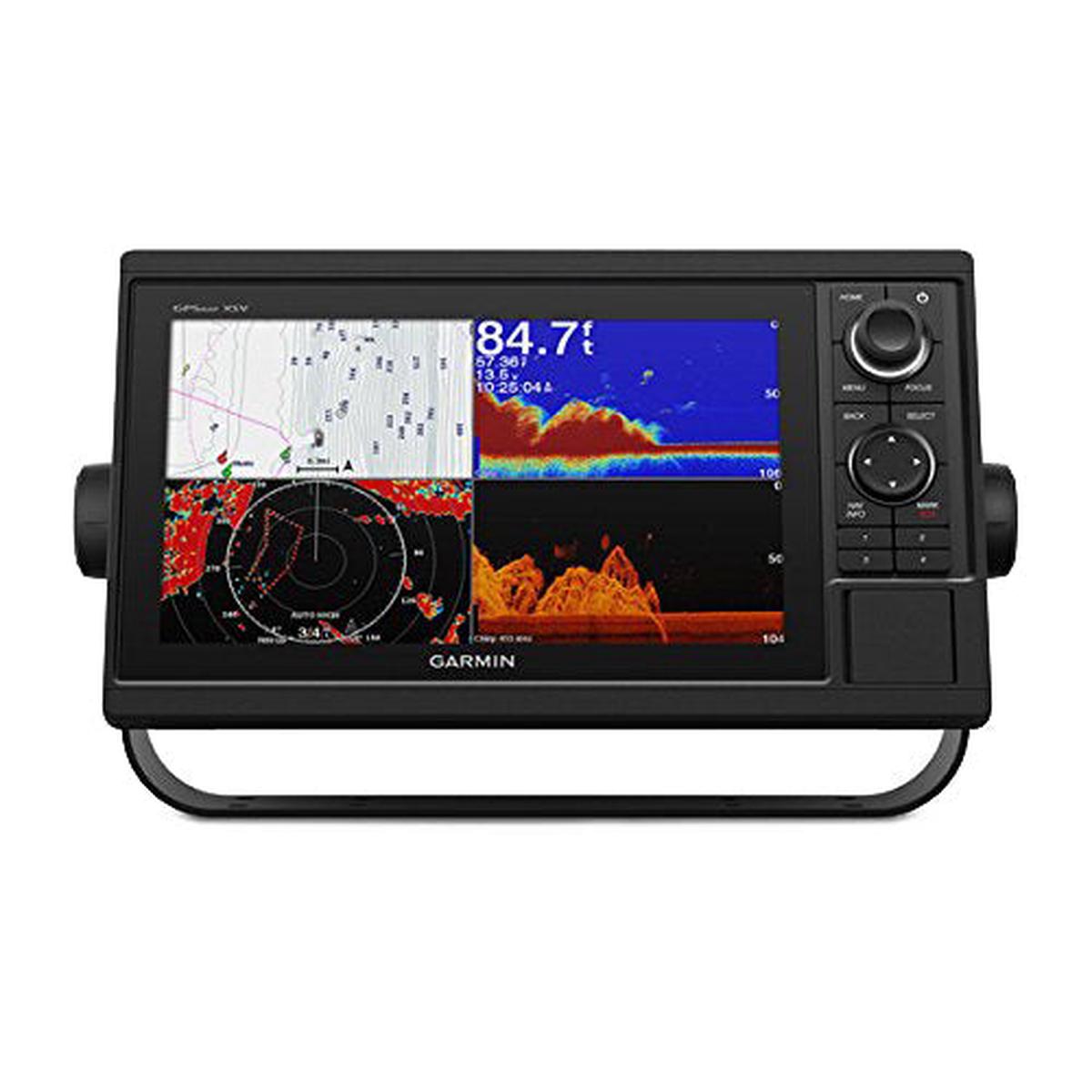

Gpsmap 1042xsv Without Transducer

Experience an advanced all-in-one solution with our 10 GPSMAP 1042xsv keyed combo. It has built-in support for Garmin CHIRP sonar and CHIRP ClearV and CHIRP SideV sonars. Theres also built-in support for Panoptix all-seeing sonar, including Panoptix LiveScope and a wide range of other transducers (sold separately). Features include a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Features:

– 10″ color display with keypad interface and multifunction control knob
– Built-in support for Garmin CHIRP sonar and CHIRP ClearV and CHIRP SideV scanning sonars (transducers sold separately)
– Preloaded U.S. LakeV g3 maps and BlueChart g3 charts feature Navionics data and Auto Guidance technology
– High-sensitivity internal 10 Hz GPS and GLONASS receiver
– Fully network capable for Garmin Marine Network and NMEA 2000 connectivity plus NMEA 0183 support
– Complete Network Sharing
– Built-in Sonar Capabilities
– Preloaded with Exceptional Garmin Cartography
– Upgrade to Garmin’s Best Maps on the Water
– Built-in ANT Connectivity
– The Ultimate Connected Boating App
– Heading, Position Refreshed 10 Times per Second
– Quickdraw Contours to Create Your Own HD Maps
– Built-in SailAssist Features
– GPX Waypoints Transfer

Package Includes:

– GPSMAP 1042xsv Chartplotter
– Power/Data Cable
– NMEA 2000 T-Connector
– NMEA 2000 Drop Cable (2 m)
– 8-Pin Transducer to 12-Pin Sounder Adapter Cable
– Bail Mount Kit with Knobs
– Flush Mount Kit with Gasket
– Protective Cover
– Trim Piece Snap Covers
– Documentation

Specifications:

General:

– Dimensions: 12 1/2″ x 7.30″ x 2.70″
– Display Size: 8.80″ x 4.90″
– Display Resolution: 1024 x 600 Pixels
– Display Type: WSVGA
– Weight: 4.10 lbs
– Water rating: IPX7
– Antenna: Internal or External Over NMEA 2000
– Mounting Options: Bail or Flush
– Receiver: 10 Hz High-Sensitivity
– Garmin Marine Network Ports: 2

Power Consumption:

– Maximum Power Usage at 10 Vdc: 32.4 W
– Typical Current Draw at 12 Vdc: 1.9 A
– Maximum Current Draw at 12 Vdc: 2.7 A

Maps and Memory:

– Preloaded Maps: BlueChart g2 (US and Western Canada Coastal Maps) and LakeV HD (Inland Maps)
– Accepts Data Cards: 2 SD Cards
– Waypoints: 5,000
– Routes: 100
– Track Log: 50,000 Points and 50 Saved Tracks

Outdoor Recreation Features:

– Tide Tables

Chartplotter FeaturesL

– Garmin Radar Compatible
– Garmin Sonar Compatible: Yes (Built-In)
– Garmin SmartMode Compatible (Customizable Monitor Pre-Sets)
– Supports AIS (Tracks Target Ships Position)
– Supports DSC (Displays Position Data From DSC-Capable VHF Radio)
– Garmin Meteor Audio System Compatible
– Supports FUSION-Link Compatible Radios
– GSD Black Box Sonar Support
– GCV Black Box Sonar Support
– ActiveCaptain Compatible
– Garmin Helm Compatible
– GRID (Garmin Remote Input Device) Compatible
– Wireless remote Compatible

Sonar Features and Specifications:

– Dual Frequency (50/200 kHz) Sonar Capable
– Dual Beam (77/200 kHz) Sonar Capable
– Transmit Power: 1 kW traditional; 1 kW single channel CHIRP
– CHIRP Sonar Technology: Yes (Built-In)
– ClearV: Yes with CHIRP (Built-In)
– SideV: Yes with CHIRP (Built-In)
– Maximum Depth: 5000′ 1kW
– Bottom Lock (Shows Return From the Bottom Up)
– Water temperature Log and Graph
– Sonar Recording and History Rewind

Connections:

– NMEA 2000 Compatible
-Transducer Pin Numbers: 12
– NMEA 0183 Input Ports: 1
– NMEA 0183 Output Ports: 1
– Video Input Ports: 1 BNC
– Video Output Ports: None
– Wireless Connectivity
